CE

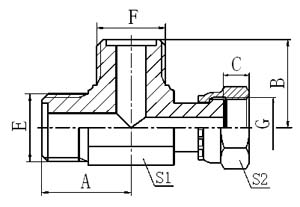

METRIC MALE O-RING / METRIC FEMALE RUN TEE

PART NO. THREAD O-RING DIMENSIONS
E/F/G E/F A B C S1 S2
CE-14 M14X1.5 10X1.9 22.5 22.5 8.5 14 19
CE-16 M16X1.5 11X1.9 24 24 8.5 17 22
CE-18 M18X1.5 13X1.9 26 26 8.5 19 24
CE-22 M22X1.5 16X2.4 29 29 10 22 27
CE-27 M27X1.5 20X2.4 32.5 32.5 10 27 32
CE-30 M30X1.5 24X2.4 35.5 35.5 11 30 36
CE-36 M36X2 30X3.1 42 42 13 36 41
CE-39 M39X2 32X3.1 47.5 47.5 13 41 46
CE-42 M42X2 35X3.1 49.5 49.5 15 41 50
CE-45 M45X2 38X3.1 52.5 52.5 15 46 55
CE-52 M52X2 40X3.1 57 57 17 50 60



Note:The parameter of O-Ring is ring outside diameter and ring width.
