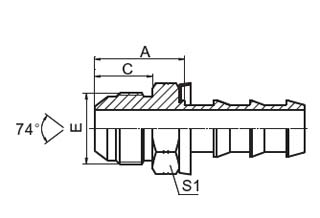

| PART NO. |
THREAD |
HOSE BORE |
DIMENSIONS |
| E |
DN |
DASH |
A |
C |
S1 |
| 16711-04-04PO |
7/16"X20 |
6 |
04 |
22 |
14 |
12 |
| 16711-06-04PO |
9/16"X18 |
6 |
04 |
22 |
14.1 |
17 |
| 16711-06-06PO |
9/16"X18 |
10 |
06 |
22 |
14.1 |
17 |
| 16711-08-06PO |
3/4"X16 |
10 |
06 |
27.2 |
16.7 |
22 |
| 16711-08-08PO |
3/4"X16 |
12 |
08 |
27.2 |
16.7 |
22 |
| 16711-10-10PO |
7/8"X14 |
16 |
10 |
30 |
19.3 |
24 |
| 16711-10-12PO |
7/8"X14 |
20 |
12 |
29.4 |
19.3 |
24 |
| 16711-12-08PO |
1.1/16"X12 |
12 |
08 |
34.5 |
21.9 |
27 |
| 16711-12-10PO |
1.1/16"X12 |
16 |
10 |
34 |
21.9 |
27 |
| 16711-12-12PO |
1.1/16"X12 |
20 |
12 |
33.4 |
21.9 |
27 |
| |
|
|
|
|
|
|
|
|
