| PART NO. |
FLANGE SIZE |
HOSE BORE |

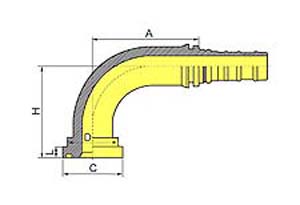

DIMENSIONS |
| DN |
DASH |
A |
C |
D |
H |
L |
| 87993-12-12 |
3/4" |
20 |
12 |
75 |
41.3 |
31.7 |
71.5 |
14.3 |
| 87993-16-12 |
1" |
20 |
12 |
75 |
47.6 |
38 |
73 |
14.3 |
| 87993-16-16 |
1" |
25 |
16 |
88.9 |
47.6 |
38 |
78.5 |
14.3 |
| 87993-20-16 |
1.1/4" |
25 |
16 |
88.9 |
54 |
43 |
79.5 |
14.3 |
| 87993-20-20 |
1.1/4" |
32 |
20 |
105.8 |
54 |
43 |
90.5 |
14.3 |
| 87993-24-20 |
1.1/2" |
32 |
20 |
105.8 |
63.5 |
50.8 |
91.5 |
14.3 |
| 87993-24-24 |
1.1/2" |
40 |
24 |
124.2 |
63.5 |
50.8 |
105 |
14.3 |
| |
|
|
|
|
|
|
|
|
|
|
