| PART NO. |
FLANGE SIZE |
HOSE BORE |

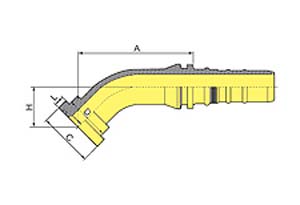

DIMENSIONS |
| DN |
DASH |
A |
C |
D |
H |
L |
| 87943-12-12 |
3/4" |
20 |
12 |
92.6 |
41.3 |
31.7 |
35.6 |
14.3 |
| 87943-16-12 |
1" |
20 |
12 |
93.7 |
47.6 |
38 |
36.7 |
14.3 |
| 87943-16-16 |
1" |
25 |
16 |
103.9 |
47.6 |
38 |
37.5 |
14.3 |
| 87943-20-16 |
1.1/4" |
25 |
16 |
104.6 |
54 |
43 |
38.2 |
14.3 |
| 87943-20-20 |
1.1/4" |
32 |
20 |
117.3 |
54 |
43 |
42.3 |
14.3 |
| 87943-24-20 |
1.1/2" |
32 |
20 |
118 |
63.5 |
50.8 |
43 |
14.3 |
| 87943-24-24 |
1.1/2" |
40 |
24 |
132.5 |
63.5 |
50.8 |
46.9 |
14.3 |
| |
|
|
|
|
|
|
|
|
|
|
