| PART NO. |
FLANGE SIZE |
HOSE BORE |

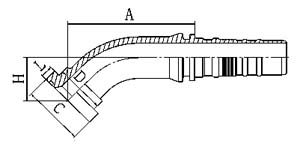

DIMENSIONS |
| DN |
DASH |
A |
C |
D |
H |
L |
| 87643-12-12 |
3/4" |
20 |
12 |
88.7 |
41.3 |
32 |
31.8 |
8.76 |
| 87643-16-12 |
1" |
20 |
12 |
90.8 |
47.6 |
38 |
33.2 |
9.53 |
| 87643-16-16 |
1" |
25 |
16 |
101.1 |
47.6 |
38 |
34.7 |
9.53 |
| 87643-20-16 |
1.1/4" |
25 |
16 |
103.9 |
54 |
44 |
37.5 |
10.29 |
| 87643-20-20 |
1.1/4" |
32 |
20 |
116.6 |
54 |
44 |
41.5 |
10.29 |
| 87643-24-20 |
1.1/2" |
32 |
20 |
120.1 |
63.5 |
51 |
45.1 |
12.57 |
| 87643-24-24 |
1.1/2" |
40 |
24 |
134.6 |
63.5 |
51 |
49 |
12.57 |
| 87643-32-24 |
2" |
40 |
24 |
140.2 |
79.4 |
67 |
54.7 |
12.57 |
| 87643-32-32 |
2" |
50 |
32 |
163.3 |
79.4 |
67 |
61.9 |
12.57 |
| |
|
|
|
|
|
|
|
|
|
|
