| PART NO. |
FLANGE SIZE |
HOSE BORE |

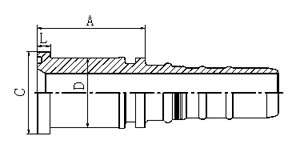

DIMENSIONS |
| DN |
DASH |
A |
C |
D |
L |
| 87613-12-12 |
3/4" |
20 |
12 |
53 |
41.3 |
32 |
8.76 |
| 87613-16-12 |
1" |
20 |
12 |
58 |
47.6 |
38 |
9.53 |
| 87613-16-16 |
1" |
25 |
16 |
59.4 |
47.6 |
38 |
9.53 |
| 87613-20-16 |
1.1/4" |
25 |
16 |
67.4 |
54 |
44 |
10.29 |
| 87613-20-20 |
1.1/4" |
32 |
20 |
69.8 |
54 |
44 |
10.29 |
| 87613-20-24 |
1.1/4" |
40 |
24 |
74.7 |
54 |
44 |
10.29 |
| 87613-24-20 |
1.1/2" |
32 |
20 |
78.8 |
63.5 |
51 |
12.57 |
| 87613-24-24 |
1.1/2" |
40 |
24 |
78.7 |
63.5 |
51 |
12.57 |
| 87613-32-24 |
2" |
40 |
24 |
91.2 |
79.4 |
67 |
12.57 |
| 87613-32-32 |
2" |
50 |
32 |
91 |
79.4 |
67 |
12.57 |
| |
|
|
|
|
|
|
|
|
|
