| PART NO. |
FLANGE SIZE |
HOSE BORE |

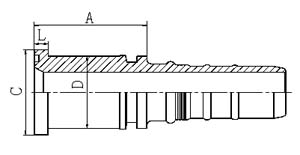

DIMENSIONS |
| DN |
DASH |
A |
C |
D |
L |
| 87313-12-12 |
3/4" |
20 |
12 |
50 |
38.1 |
31.7 |
7 |
| 87313-16-12 |
1" |
20 |
12 |
54 |
44.4 |
38 |
8.2 |
| 87313-16-16 |
1" |
25 |
16 |
54.4 |
44.4 |
38 |
8.2 |
| 87313-20-16 |
1.1/4" |
25 |
16 |
59.4 |
50.8 |
43.2 |
8.2 |
| 87313-20-20 |
1.1/4" |
32 |
20 |
65.8 |
50.8 |
43.2 |
8.2 |
| 87313-24-20 |
1.1/2" |
32 |
20 |
71.8 |
60.3 |
50.3 |
8.2 |
| 87313-24-24 |
1.1/2" |
40 |
24 |
72.2 |
60.3 |
50.3 |
8.2 |
| 87313-32-24 |
2" |
40 |
24 |
74.2 |
71.4 |
62.2 |
9.8 |
| 87313-32-32 |
2" |
50 |
32 |
78.5 |
71.4 |
62.2 |
9.8 |
| |
|
|
|
|
|
|
|
|
|
