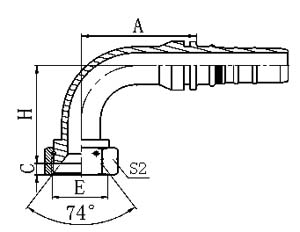

26793-W






90°JIC FEMALE 74掳 CONE SEAT

PART NO. THREAD HOSE BORE DIMENSIONS
E DN DASH A C H S2
26793-12-12W 1.1/16"X12 20 12 73.8 15 64.5 32
26793-16-16W 1.5/16"X12 25 16 88.9 16 72.5 41
26793-20-20W 1.5/8"X12 32 20 105.8 17 81.5 50
26793-24-24W 1.7/8"X12 40 24 124.2 20 101 55
26793-32-32W 2.1/2"X12 50 32 150.3 23.5 121.3 75
