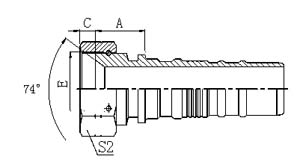

| PART NO. |
THREAD E |
HOSE BORE |
DIMENSIONS |
| DN |
DASH |
A |
C |
S2 |
| 26713-12-12W |
1.1/16"X12 |
20 |
12 |
26.5 |
15 |
32 |
| 26713-16-16W |
1.5/16"X12 |
25 |
16 |
29.4 |
16 |
41 |
| 26713-20-20W |
1.5/8"X12 |
32 |
20 |
32.3 |
17 |
50 |
| 26713-24-24W |
1.7/8"X12 |
40 |
24 |
35.2 |
20 |
60 |
| 26713-32-32W |
2.1/2"X12 |
50 |
32 |
34.5 |
23.5 |
75 |
| |
|
|
|
|
|
|
|
|
