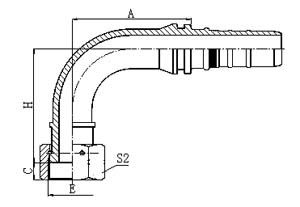

24293-W






90 ORFS FEMALE FLAT SEAT


PART NO. THREAD E HOSE BORE DIMENSIONS
DN DASH A C H S2
24293-12-12W 1.3/16"X12 20 12 73.8 15 80.5 36
24293-16-16W 1.7/16"X12 25 16 88.9 15 88.5 41
24293-20-20W 1.11/16"X12 32 20 105.8 15 100 50
24293-24-24W 2"X12 40 24 123.2 14.8 114.5 60
