24213-W

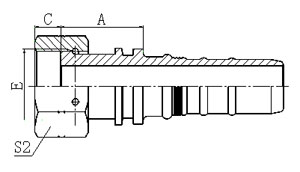

ORFS FEMALE FLAT SEAT


PART NO. THREAD E HOSE BORE DIMENSIONS
DN DASH A C S2
24213-12-12W 1.3/16"X12 20 12 41 15 36
24213-16-16W 1.7/16"X12 25 16 44.4 15 41
24213-20-20W 1.11/16"X12 32 20 47.8 15 50
24213-24-24W 2"X12 40 24 48.2 14.8 60
