| PART NO. |
THREAD E |
HOSE BORE |
DIMENSIONS |
| DN |
DASH |

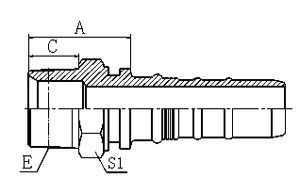

A |
C |
S1 |
| 15613-12-12 |
Z3/4"X14 |
20 |
12 |
37.5 |
19.5 |
30 |
| 15613-16-16 |
Z 1"X11.5 |
25 |
16 |
45.9 |
25.5 |
38 |
| 15613-20-20 |
Z1.1/4"X11.5 |
32 |
20 |
51.3 |
26.5 |
46 |
| 15613-24-24 |
Z1.1/2"X11.5 |
40 |
24 |
54.2 |
27.5 |
50 |
| 15613-32-32 |
Z 2"X11.5 |
50 |
32 |
56.5 |
27.5 |
65 |
| |
|
|
|
|
|
|
|
|
