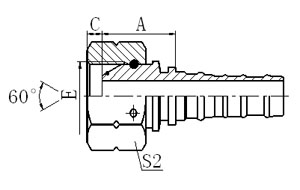

22613 -ORW






BSP FEMALE 60°CONE O-RING
REF. BS 5200


PART NO. THREAD E HOSE BORE DIMENSIONS
DN DASH A C S2
22613-12-12ORW G3/4"X14 20 12 26.5 10.9 32
22613-16-16ORW G1"X11 25 16 30.4 11.7 41
22613-20-20ORW G1.1/4"X11 32 20 35.8 11 50
22613-24-24ORW G1.1/2"X11 40 24 36.7 14 55
22613-32-32ORW G2"X11 50 32 36.5 16 70
