| PART NO. |
THREAD E |
HOSE BORE |

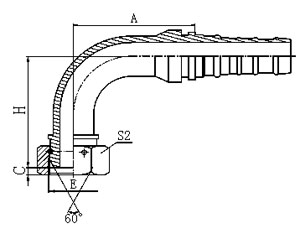

DIMENSIONS |
| DN |
DASH |
A |
C |
H |
S2 |
| 22693-12-12W |
G3/4"X14 |
20 |
12 |
73.8 |
10.9 |
67.1 |
32 |
| 22693-16-16W |
G1"X11 |
25 |
16 |
91.9 |
11.7 |
72 |
41 |
| 22693-20-20W |
G1.1/4"X11 |
32 |
20 |
105.8 |
11 |
88.3 |
50 |
| 22693-24-24W |
G1.1/2"X11 |
40 |
24 |
124.2 |
13.5 |
103 |
55 |
| 22693-32-32W |
G2"X11 |
50 |
32 |
148.8 |
16 |
123.3 |
70 |
| |
|
|
|
|
|
|
|
|
|
