12613

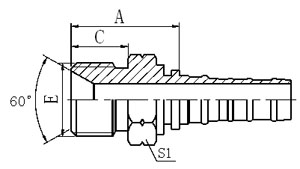

BSP MALE 60° CONE SEAT


PART NO. THREAD E HOSE BORE DIMENSIONS
DN DASH A C S1
12613-12-12 G3/4"X14 20 12 37.5 18.5 30
12613-16-16 G1"X11 25 16 41 20.5 36
12613-20-20 G1.1/4"X11 32 20 45.3 20.5 46
12613-24-24 G1.1/2"X11 40 24 49.7 23 50
12613-32-32 G2"X11 50 32 52 25.5 60
