| PART NO. |
THREAD E |

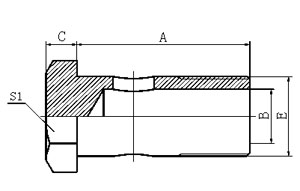

DIMENSIONS |
| A |
B |
C |
S1(L) |
S1(S) |
| 700M-10 |
M10X1 |
19 |
5 |
6 |
14 |
/ |
| 700M-12 (H) |
M12X1.5 |
24 |
6 |
6 |
17 |
19 |
| 700M-14(H) |
M14X1.5 |
26 |
8 |
7 |
19 |
19 |
| 700M-16(H) |
M16X1.5 |
28 |
9 |
7.5 |
22 |
24 |
| 700M-18 (H) |
M18X1.5 |
32 |
11 |
8 |
24 |
27 |
| 700M-22 (H) |
M22X1.5 |
39 |
14 |
9 |
27 |
30 |
| 700M-26 (H) |
M26X1.5 |
45 |
18 |
10 |
32 |
36 |
| 700M-30(H) |
M30X1.5 |
51 |
22 |
11 |
38 |
/ |
| |
|
|
