| PART NO. |
HOSE BORE |
O-RING |

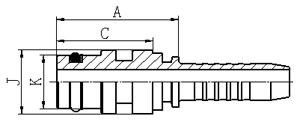

DIMENSIONS |
| DN |
DASH |
A |
C |
J |
K |
| 67011-04-04 |
6 |
04 |
O06.0X2.0 |
34 |
28 |
14.9 |
9.9 |
| 67011-06-06 |
10 |
06 |
O10.0X2.0 |
35 |
28 |
19.9 |
13.9 |
| 67011-08-08 |
12 |
08 |
O13.0X2.5 |
36 |
28 |
23.9 |
17.9 |
| 67011-12-12 |
20 |
12 |
O19.0X2.5 |
37.5 |
28 |
28.9 |
23.9 |
| 67011-16-16 |
25 |
16 |
O25.0X2.5 |
44 |
33 |
38.8 |
30.9 |
| 67011-20-20 |
32 |
20 |
O33.0X2.5 |
44 |
33 |
45.9 |
37.9 |
| 67011-24-24 |
40 |
24 |
O40.0X3.0 |
47.5 |
36.3 |
54.9 |
46.9 |
| 67011-32-32 |
50 |
32 |
O50.0X3.0 |
47.5 |
36.3 |
63.9 |
55.9 |
| |
|
|
|
|
|
|
|
|
|
