29641 /29641-W

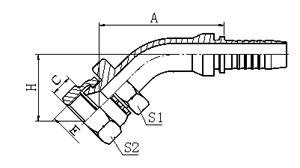

45° JIS GAS FEMALE 60° CONE SEAT

PART NO. THREAD E HOSE BORE DIMENSIONS
DN DASH A H S1 S2
29641-04-04 G1/4"X19 6 04 43.4 21.3 19 19
29641-06-06 G3/8"X19 10 06 48.9 24.6 22 22
29641-08-08 G1/2"X14 12 08 62.5 27.5 27 27
29641-12-12 G3/4"X14 20 12 81.3 33.9 32 32
29641-16-16 G1"X11 25 16 87.3 36 41 41
29641-20-20 G1.1/4"X11 32 20 102.6 41.9 50 50
29641-24-24 G1.1/2"X11 40 24 117.6 46.9 55 55
29641-04-04 SM G1/4"X19 6 04 43.4 21.3 14 19
29641-06-06 SM G3/8"X19 10 06 47.5 23.2 17 22
29641-08-08 SM G1/2"X14 12 08 61.1 26.1 22 27
29641-12-12 SM G3/4"X14 20 12 81.3 33.9 27 32
29641-16-16 SM G1"X11 25 16 87.3 36 32 41
29641-20-20 SM G1.1/4"X11 32 20 100.5 39.8 41 50
29641-24-24 SM G1.1/2"X11 40 24 117.6 46.9 46 55



Note: 1.For use with braided hoses. 2.If use with spiral hoses, hose fitting series number is 29642-xx-xx.
