28611   28611-SM

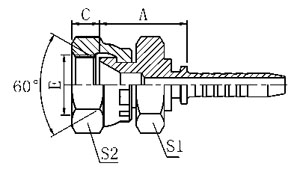

JIS METRIC FEMALE 60° CONE SEAT

PART NO. THREAD E HOSE BORE DIMENSIONS
DN DASH A S1 S2
28611-14-04 M14X1.5 6 04 21 19 19
28611-16-05 M16X1.5 8 05 24 22 22
28611-18-06 M18X1.5 10 06 24 24 24
28611-22-08 M22X1.5 12 08 25.5 27 27
28611-24-10 M24X1.5 16 10 28.5 32 32
28611-30-12 M30X1.5 20 12 28.5 36 36
28611-33-16 M33X1.5 25 16 32 41 41
28611-36-20 M36X1.5 32 20 33.5 46 46
28611-42-24 M42X1.5 40 24 36 55 55

28611-14-04 SM M14X1.5 6 04 21 14 19
28611-16-05 SM M16X1.5 8 05 22 17 22
28611-18-06 SM M18X1.5 10 06 23 17 24
28611-22-08 SM M22X1.5 12 08 26 22 27
28611-24-10 SM M24X1.5 16 10 27.5 24 32
28611-30-12 SM M30X1.5 20 12 28.5 30 36
28611-33-16 SM M33X1.5 25 16 31 32 41
28611-36-20 SM M36X1.5 32 20 33.5 41 46
28611-42-24 SM M42X1.5 40 24 34 46 55
