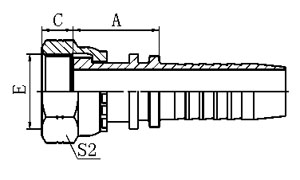

ORFS FEMALE FLAT SEAT

PART NO. THREAD E HOSE BORE DIMENSIONS
DN DASH A C S2
24211-04-04 9/16"X18 6 04 22.5 8.5 19
24211-04-05 9/16"X18 8 05 22.5 8.5 19
24211-04-06 9/16"X18 10 06 22.5 8.5 19
24211-06-04T 11/16"X16 6 04 23.5 10 22
24211-06-05T 11/16"X16 8 05 23.5 10 22
24211-06-06 11/16"X16 10 06 25.5 10 22
24211-06-08 11/16"X16 12 08 26 10 22
24211-08-05T 13/16"X16 8 05 25 11 27
24211-08-06T 13/16"X16 10 06 25 11 27
24211-08-08 13/16"X16 12 08 28 11 27
24211-08-10 13/16"X16 16 10 29 11 27
24211-10-08T 1"X14 12 08 29.5 13.5 30
24211-10-10 1"X14 16 10 33.5 13.5 30
24211-10-12 1"X14 20 12 33.5 13.5 30
24211-12-08T 1.3/16"X12 12 08 30.5 15 36
24211-12-10T 1.3/16"X12 16 10 31.5 15 36
24211-12-12 1.3/16"X12 20 12 35 15 36
24211-12-16 1.3/16"X12 25 16 36 15 36
24211-16-12T 1.7/16"X12 20 12 35 14.8 41
24211-16-14T 1.7/16"X12 22 14 34 14.8 41


Note: 1.For use with braided hoses. 2.If use with spiral hoses, hose fitting series number is 24212-xx-xx.
