22611D-SM

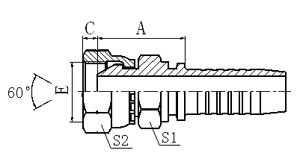

BSP FEMALE 60° CONE DOUBLE HEXAGON

PART NO. THREAD E HOSE BORE DIMENSIONS
DN DASH A C S1 S2
22611D-04-04SM G1/4"X19 6 04 23 5.5 14 19
22611D-06-06SM G3/8"X19 10 06 25 6.3 17 22
22611D-08-08SM G1/2"X14 12 08 28.5 7.5 22 27
22611D-10-08SM G5/8"X14 12 08 30 9.5 22 30
22611D-12-08SM G3/4"X14 12 08 32.1 10.9 27 32
22611D-12-12SM G3/4"X14 20 12 32.5 10.9 27 32
22611D-16-16SM G1"X11 25 16 36.3 11.7 32 41
22611D-20-20SM G1.1/4"X11 32 20 41.5 11 41 50


Note: 1.For use with braided hoses. 2.If use with spiral hoses, hose fitting series number is 22612-xx-xx.
