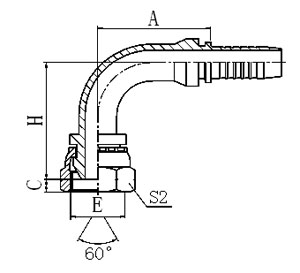

| PART NO. |
THREAD E |
HOSE BORE |
DIMENSIONS |
| DN |
DASH |
A |
C |
H |
S2 |
| 22691-02-03 |
G1/8"X28 |
5 |
03 |
26.5 |
5.5 |
31.5 |
14 |
| 22691-02-04 |
G1/8"X28 |
6 |
04 |
30 |
5.5 |
34.5 |
14 |
| 22691-04-03 |
G1/4"X19 |
5 |
03 |
26.5 |
5.5 |
33.5 |
19 |
| 22691-04-04 |
G1/4"X19 |
6 |
04 |
30 |
5.5 |
36.5 |
19 |
| 22691-04-05 |
G1/4"X19 |
8 |
05 |
33 |
5.5 |
39.5 |
19 |
| 22691-04-06 |
G1/4"X19 |
10 |
06 |
30 |
5.5 |
36.5 |
19 |
| 22691-06-04 |
G3/8"X19 |
6 |
04 |
30 |
6.3 |
37.7 |
22 |
| 22691-06-05 |
G3/8"X19 |
8 |
05 |
33 |
6.3 |
40.7 |
22 |
| 22691-06-06 |
G3/8"X19 |
10 |
06 |
35.3 |
6.3 |
43 |
22 |
| 22691-08-06T |
G1/2"X14 |
10 |
06 |
35.3 |
7 |
43.3 |
27 |
| 22691-08-08 |
G1/2"X14 |
12 |
08 |
41 |
7.5 |
51 |
27 |
| 22691-08-10 |
G1/2"X14 |
16 |
10 |
56.5 |
7.5 |
55.5 |
27 |
| 22691-10-08 |
G5/8"X14 |
12 |
08 |
41 |
9.5 |
51.5 |
30 |
| 22691-10-10 |
G5/8"X14 |
16 |
10 |
56.5 |
9.5 |
56 |
30 |
| 22691-12-08T |
G3/4"X14 |
12 |
08 |
41 |
10.9 |
52.1 |
32 |
| 22691-12-10 |
G3/4"X14 |
16 |
10 |
56.5 |
10.9 |
56.6 |
32 |
| 22691-12-12 |
G3/4"X14 |
20 |
12 |
65.5 |
10.9 |
66 |
32 |
| 22691-16-12T |
G1"X11 |
20 |
12 |
65.5 |
11.7 |
68.3 |
41 |
| 22691-16-14 |
G1"X11 |
22 |
14 |
71.2 |
11.7 |
69.3 |
41 |
| 22691-16-16 |
G1"X11 |
25 |
16 |
76.7 |
11.7 |
73.8 |
41 |
| |
|
|
|
|
|
|
|
|
|
|
