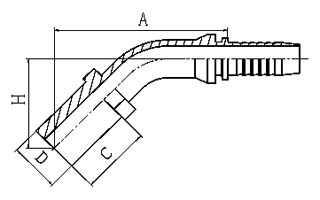

45° METRIC STANDPIPE STRAIGHT DIN 2353

PART NO. TUBE O.D. HOSE BORE DIMENSIONS Note:
DN DASH A C H
50041-06-03 6 5 03 47.8 22 27.5 L
50041-06-04 6 6 04 52.2 22 30.1
50041-08-05 8 8 05 55.7 24 32.4
50041-08-06 8 10 06 57.9 24 33.1
50041-10-05 10 8 05 54 23 30.6
50041-10-06 10 10 06 56.1 23 31.3
50041-12-06 12 10 06 58.5 23 34.5
50041-12-08 12 12 08 72.4 23 37.4
50041-15-06 15 10 06 59.3 25 34.5
50041-15-08 15 12 08 70.6 25 35.7
50041-18-08 18 12 08 73.4 26 38.5
50041-18-10 18 16 10 84.6 26 39.8
50041-22-10 22 16 10 87.1 28 42.3
50041-22-12 22 20 12 93.3 28 45.9
50041-22-16 22 25 16 100.9 28 46.7
50041-28-16 28 25 16 103.7 30 49.5
50041-35-20 35 32 20 118.5 36 57.8
50041-08-04 8 6 04 53.6 24 31.5 S
50041-10-04 10 6 04 54 26 31.9
50041-12-05 12 8 05 59.2 26 35.9
50041-14-06 14 10 06 62.1 29 37.3
50041-16-08 16 12 08 76.6 30 41.6
50041-20-10 20 16 10 92.8 36 48
50041-25-12 25 20 12 101.8 40 54.4
50041-30-16 30 25 16 113.6 44 59.4
50041-38-20 38 32 20 128.4 50 67.7
