20591C 20591C-T

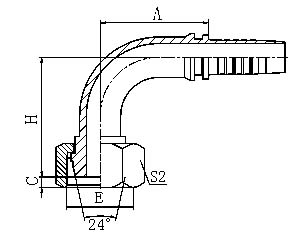

90°METRIC FEMALE MULTISEAL H.T.DIN3868

PART NO. THREAD E HOSE BORE TUBE O.D. DIMENSIONS
DN DASH A C H S2
20591C-16-04 M16X1.5 6 04 8 30 3 40 22   41
20591C-18-04T M18X1.5 6 04 10 30 3 38.5 22   46
20591C-20-05T M20X1.5 8 05 12 33 4.5 42 24
20591C-20-06T M20X1.5 10 06 12 35.3 4.5 45.7 24
20591C-22-06T M22X1.5 10 06 14 35.3 4.5 44.7 27
20591C-24-08T M24X1.5 12 08 16 41 5 52 30
20591C-30-10T M30X2 16 10 20 56.5 7 56.5 36
20591C-36-12T M36X2 20 12 25 65.5 6.5 66.5 41
20591C-42-16T M42X2 25 16 30 78 9 73.5 50
20591C-52-20T M52X2 32 20 38 93 8 87.5 60   55



Note: 1.For use with braided hoses.

2.If use with spiral hoses, hose fitting series number is 20592C-xx-xx.
