20541C   20541C-T

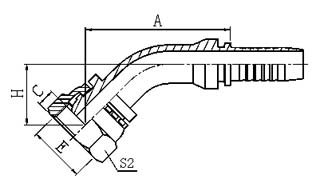

45 °METRIC FEMALE MULTISEAL H.T.DIN 3868



PART NO. THREAD E HOSE BORE TUBE O.D. DIMENSIONS
DN DASH A C H S2
20541C-16-04 M16X1.5 6 04 8 44.8 3 22.7 19
20541C-18-04T M18X1.5 6 04 10 43.7 3 21.6 22
20541C-20-06T M20X1.5 10 06 12 48.9 4.5 24.6 24
20541C-24-08T M24X1.5 12 08 16 61.4 2.5 26.5 30
