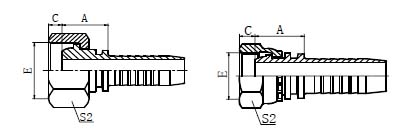

20511C/ 20511C-T



METRIC FEMALE 24° MULTISEAL H.T.DIN3868

PART NO. THREAD E HOSE BORE TUBE O.D. DIMENSIONS
DN DASH A C S2
20511C-18-04T M18X1.5 6 04 10 21 3 22
20511C-20-05T M20X1.5 8 05 12 21.5 4.5 24
20511C-20-06T M20X1.5 10 06 12 21.5 4.5 24
20511C-22-06T M22X1.5 10 06 14 21.5 4.5 27
20511C-24-08T M24X1.5 12 08 16 23 5 30
20511C-30-10T M30X2 16 10 20 26.5 7 36
20511C-36-12T M36X2 20 12 25 27 6.5 41
20511C-42-16T M42X2 25 16 30 29.5 9 50
20511C-52-20T M52X2 32 20 38 34 8 60
