20491C  20491C-T

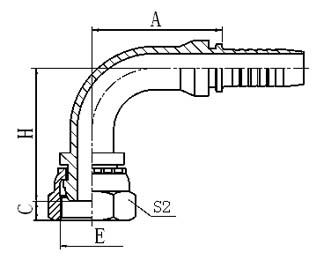

90° METRIC FEMALE 24° MULTISEAL L.T.

DIN 3868



PART NO. THREAD E HOSE BORE TUBE O.D. DIMENSIONS
DN DASH A C H S2
20491C-14-04 M14X1.5 6 04 8 30 3.5 39.5 19
20491C-16-04 M16X1.5 6 04 10 30 3.5 40 22
20491C-16-05 M16X1.5 8 05 10 33 3.5 43 22
20491C-16-06 M16X1.5 10 06 10 35.25 3.5 45.2 22
20491C-18-06 M18X1.5 10 06 12 35.25 3 47.25 24
20491C-22-08 M22X1.5 12 08 15 41 4.5 53 27
20491C-26-10 M26X1.5 16 10 18 56.5 4 60 32
20491C-30-12 M30X2 20 12 22 65.5 7 68.5 36
20491C-36-12T M36X2 20 12 28 65.5 6.5 67.5 41



Note: 1.For use with braided hoses. 2.If use with spiral hoses, hose fitting series number is 20492-xx-xx.
