20411C  20411C-T




METRIC FEMALE 24° MULTISEAL L.T.

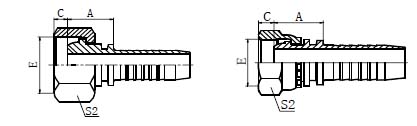

PART NO. THREAD E HOSE BORE TUBE O.D. DIMENSIONS
DN DASH A C S1
20411C-12-04 M12X1.5 6 04 6 19.5 3.5 17
20411C-14-04 M14X1.5 6 04 8 20.5 3.5 19
20411C-16-04 M16X1.5 6 04 10 21 3.5 22
20411C-16-05 M16X1.5 8 05 10 21 3.5 22
20411C-16-06 M16X1.5 10 06 10 21 3.5 22
20411C-18-06 M18X1.5 10 06 12 22.5 3 24
20411C-22-06T M22X1.5 10 06 15 23.5 4.5 27
20411C-22-08 M22X1.5 12 08 15 24 4.5 27
20411C-26-10T M26X1.5 16 10 18 27 4 32
20411C-30-10T M30X2 16 10 22 26.5 7 36
20411C-30-12 M30X2 20 12 22 27 7 36
20411C-30-14 M30X2 22 14 22 27 7 36
20411C-36-16 M36X2 25 16 28 29 6.5 41
20411C-45-20T M45X2 32 20 35 33 7 55
20411C-52-24T M52X2 40 24 42 34 8 60
