20411  20411-T

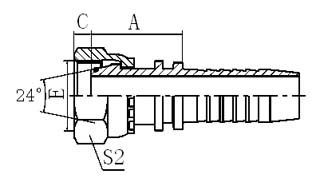

METRIC FEMALE 24° CONE O-RING L.T.DIN3865



PART NO. THREAD E HOSE BORE TUBE O.D. O-RING DIMENSIONS
DN DASH A C S2
20411-12-04 M12X1.5 6 04 6 O04.5X1.5 26 1 17
20411-14-04 M14X1.5 6 04 8 O06.5X1.5 27.5 2 19
20411-14-06 M14X1.5 10 06 8 O06.5X1.5 27.5 2 19
20411-16-04 M16X1.5 6 04 10 O08.0X1.5 28 2 22
20411-16-05 M16X1.5 8 05 10 O08.0X1.5 28 2 22
20411-16-06 M16X1.5 10 06 10 O08.0X1.5 28 2 22
20411-18-05T M18X1.5 8 05 12 O10.0X1.5 27.5 1.8 22
20411-18-06 M18X1.5 10 06 12 O10.0X1.5 29 2.5 24
20411-18-08 M18X1.5 12 08 12 O10.0X1.5 29.5 2.5 24
20411-22-05T M22X1.5 8 05 15 O12.0X2.0 29.5 2.1 27
20411-22-06T M22X1.5 10 06 15 O12.0X2.0 29 2.5 27
20411-22-08 M22X1.5 12 08 15 O12.0X2.0 32 2.5 27
20411-26-10 M26X1.5 16 10 18 O15.0X2.0 35 2.5 32
20411-26-12 M26X1.5 20 12 18 O15.0X2.0 35 2.5 32
20411-27-10T M27X1.5 16 10 18 O15.0X2.0 35 2.5 32
20411-27-12 M27X1.5 20 12 18 O15.0X2.0 35 2.5 32
20411-30-10T M30X2 16 10 22 O20.0X2.0 35 4 36
20411-30-12 M30X2 20 12 22 O20.0X2.0 38 4 36
20411-36-12T M36X2 20 12 28 O26.0X2.0 35 4 41
20411-36-14T M36X2 22 14 28 O26.0X2.0 36 4 41


Note: 1.For use with braided hoses. 2.If use with spiral hoses, hose fitting series number is 20412-xx-xx.
