20711   20711-T

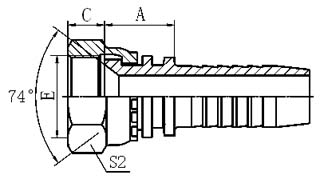

GB METRIC FEMALE 74° CONE SEAT

PART NO. THREAD E HOSE BORE DIMENSIONS
DN DASH A C S2
20711-10-02 M10X1 4 02 14 7.5 14
20711-12-03C M12X1.25 5 03 14 9 17
20711-12-03 M12X1.5 5 03 14 10 17
20711-12-04 M12X1.5 6 04 14.5 10 17
20711-14-04 M14X1.5 6 04 15.5 8.5 19
20711-14-05 M14X1.5 8 05 15.5 8.5 19
20711-14-06 M14X1.5 10 06 15.5 8.5 19
20711-16-04 M16X1.5 6 04 16.5 8 22
20711-16-05 M16X1.5 8 05 16.5 8 22
20711-16-06 M16X1.5 10 06 16 8 22
20711-18-05T M18X1.5 8 05 16 8 22
20711-18-06 M18X1.5 10 06 17.5 10 24
20711-20-06T M20X1.5 10 06 16 10 24
20711-20-08 M20X1.5 12 08 18.5 10 27
20711-22-06T M22X1.5 10 06 16 10 27
20711-22-08 M22X1.5 12 08 18.5 10 27
20711-22-10 M22X1.5 16 10 19.5 10 27
20711-24-08T M24X1.5 12 08 16.5 11 30
20711-27-08T M27X1.5 12 08 18.5 11 32
20711-27-10T M27X1.5 16 10 21.5 11 32


Note: 1.For use with braided hoses. 2.If use with spiral hoses, hose fitting series number is 20712-xx-xx.
