20141  20141-T

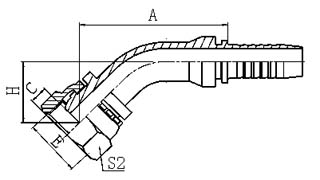

45° METRIC FEMALE MULTISEAL



PART NO. THREAD E HOSE BORE DIMENSIONS
DN DASH A C H S2
20141-10-03 M10X1 5 03 41.1 2.5 20.7 14
20141-10-04 M10X1 6 04 43.2 2.5 21.5 14
20141-12-03 M12X1.5 5 03 40.9 4 21.2 17
20141-12-04 M12X1.5 6 04 43 4 22 17
20141-14-04 M14X1.5 6 04 43.4 4.5 21.3 19
20141-14-05 M14X1.5 8 05 45.5 4.5 22.2 19
20141-16-04 M16X1.5 6 04 43.7 4.5 21.4 22
20141-16-05 M16X1.5 8 05 45.8 4.5 22.5 22
20141-16-06 M16X1.5 10 06 47.4 4.5 24.1 22
20141-18-05T M18X1.5 8 05 46.8 4 22.6 24
20141-18-06 M18X1.5 10 06 48.5 4 24.2 24
20141-18-08 M18X1.5 12 08 52.2 4 25.7 24
20141-20-06T M20X1.5 10 06 48.2 5.5 23.9 27
20141-20-08 M20X1.5 12 08 62.1 5.5 27.2 27
20141-22-06T M22X1.5 10 06 58.4 5 25.7 27
20141-22-08 M22X1.5 12 08 62.1 5 27.2 27
20141-24-08T M24X1.5 12 08 61.1 5.5 26.1 30
20141-24-10 M24X1.5 16 10 75.4 5 29.6 30
20141-27-10DT M27X1.5 16 10 74.4 5.5 29.6 32
20141-27-10T M27X2 16 10 74.4 5.5 29.6 32



Note: 1.For use with braided hoses. 2.If use with spiral hoses, hose fitting series number is 20142-xx-xx.
