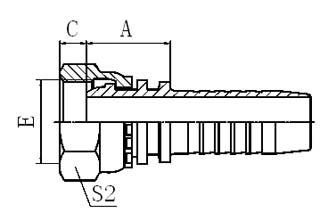

| PART NO. |
THREAD E |
HOSE BORE |
DIMENSIONS |
| DN |
DASH |
A |
C |
S2 |
| 20111-10-03 |
M10X1 |
5 |
03 |
18 |
2.5 |
14 |
| 20111-10-04 |
M10X1 |
6 |
04 |
18 |
2.5 |
14 |
| 20111-12-04 |
M12X1.5 |
6 |
04 |
18.5 |
4 |
17 |
| 20111-12-05 |
M12X1.5 |
8 |
05 |
18.5 |
4 |
17 |
| 20111-14-04 |
M14X1.5 |
6 |
04 |
19.5 |
4.5 |
19 |
| 20111-14-05 |
M14X1.5 |
8 |
05 |
19.5 |
4.5 |
19 |
| 20111-16-04 |
M16X1.5 |
6 |
04 |
19.5 |
4.5 |
22 |
| 20111-16-05 |
M16X1.5 |
8 |
05 |
20 |
4.5 |
22 |
| 20111-16-06 |
M16X1.5 |
10 |
06 |
20 |
4.5 |
22 |
| 20111-18-05T |
M18X1.5 |
8 |
05 |
21.5 |
4 |
24 |
| 20111-18-06 |
M18X1.5 |
10 |
06 |
21.5 |
4 |
24 |
| 20111-18-08 |
M18X1.5 |
12 |
08 |
22 |
4 |
24 |
| 20111-20-06T |
M20X1.5 |
10 |
06 |
20.5 |
5.5 |
24 |
| 20111-20-08 |
M20X1.5 |
12 |
08 |
23 |
5.5 |
27 |
| 20111-22-06T |
M22X1.5 |
10 |
06 |
23 |
5 |
27 |
| 20111-22-08 |
M22X1.5 |
12 |
08 |
23.5 |
5 |
27 |
| 20111-22-10 |
M22X1.5 |
16 |
10 |
24.5 |
5 |
27 |
| 20111-24-08T |
M24X1.5 |
12 |
08 |
22 |
5.5 |
30 |
| 20111-24-10 |
M24X1.5 |
16 |
10 |
26 |
5 |
30 |
| 20111-27-08DT |
M27X1.5 |
12 |
08 |
23 |
5.5 |
32 |
| |
|
|
|
|
|
|
| |
|
|
