20641   20641-T

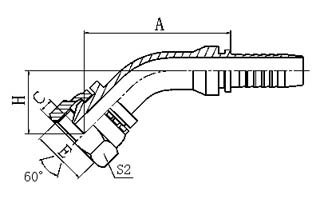

45° METRIC FEMALE 60°CONE



PART NO. THREAD E HOSE BORE DIMENSIONS
DN DASH A C H S2
20641-14-04 M14X1.5 6 04 42.7 5.5 20.6 19
20641-16-05 M16X1.5 8 05 45.1 5.5 21.8 22
20641-18-06 M18X1.5 10 06 47.4 5.5 23.2 24
20641-22-08 M22X1.5 12 08 61.8 6 26.8 27
20641-27-10DT M27X1.5 16 10 71.4 6 27.1 32
20641-30-12D M30X1.5 20 12 81.6 6 33.5 36
20641-36-14T M36X2 22 14 81.9 6.5 31.6 41
20641-39-16T M39X2 25 16 88.5 6.5 34.3 46
20641-45-20T M45X2 32 20 99.1 8.5 38.4 55
20641-52-24T M52X2 40 24 113.4 10 42.7 60



Note: 1.For use with braided hoses. 2.If use with spiral hoses, hose fitting series number is 20642-xx-xx.
