20611   20611-T

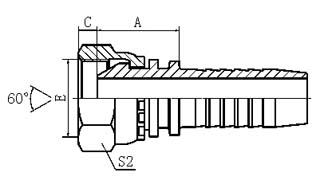

METRIC FEMALE 60° CONE



PART NO. THREAD E HOSE BORE DIMENSIONS
DN DASH A C S2
20611-14-04 M14X1.5 6 04 18 5.5 19
20611-16-05 M16X1.5 8 05 19 5.5 22
20611-16-06 M16X1.5 10 06 19 5.5 22
20611-18-06 M18X1.5 10 06 20 5.5 24
20611-20-08 M20X1.5 12 08 22 6.5 27
20611-22-08 M22X1.5 12 08 22.5 6 27
20611-24-10 M24X1.5 16 10 24.5 6.5 30
20611-26-10 M26X1.5 16 10 25.5 6 32
20611-27-10DT M27X1.5 16 10 25.5 6 32
20611-27-10T M27X2 16 10 25.5 6 32
20611-30-10D M30X1.5 16 10 26.5 6 36
20611-30-12D M30X1.5 20 12 26.5 6 36
20611-30-12 M30X2 20 12 26.5 6 36
20611-36-16 M36X2 25 16 30 6.5 41
20611-39-16T M39X2 25 16 30 6.5 46
20611-45-20T M45X2 32 20 31 8.5 55
20611-52-24T M52X2 40 24 32 10 60



Note: 1.For use with braided hoses. 2.If use with spiral hoses, hose fitting series number is 20612-xx-xx.
