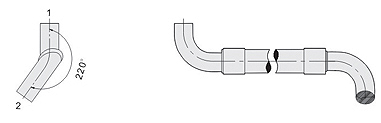

Specified only if two elbow fittings are used.To measure displacement angle of a hose assembly,point one end of coupling "1" to a vertical poistion upward.

The angle can then be measured from the centreline of couping "1" in a clockwise direction to the centreline of coupling "2" As shown:Example:V220
